3.2V AA IFR14500 Lithium Iron Phosphate Battery 600mAh With Protection Circuit Application For Smart Lock

Name: 32V AA IFR14500 Lithium Iron Phosphate Battery 600mAh With Protection Circuit Application For Smart Lock
Brand: Sunland
Price: 1.27 USD

Quality 3.2V AA IFR14500 Lithium Iron Phosphate Battery 600mAh With Protection Circuit Application For Smart Lock wholesale

Brand Name : Sunland

Model Number : IFR14500 AA

Certification : MSDS,UN38.3,ROHS,REACH,UL1642

Place of Origin : GUANGZHOU

MOQ : 1000PCS

Price : USD1.27/PCS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000PCS/week

Delivery Time : 35 days

Packaging Details : 360PCS/CARTON

Type : LiFePO4 Iron Phosphate Battery

Voltage : 3.2V

Capacity : 600mAh

Connector : JST PHR-2P

Cable : 22AWG

Dimension : Max 20mm*53mm

Weight : 25g

Protection circuit : YES

Contact Now

3.2V AA IFR14500 Lithium Iron Phosphate Battery 600mAh With Protection Circuit Application For Smart Lock

Feature:

1. Long cycle time,more than 2500 times

2. Application for household product,IOT product.

3. The battery can work in high temperaure 75℃.

3.2V AA IFR14500 Lithium Iron Phosphate Battery 600mAh With Protection Circuit Application For Smart Lock

Specification:

Item(s)		Specification	Remark
Nominal voltage (V)		3.2
Nominal Capacity (mAh)		600	Standard charging/discharge method
Minimum capacity (mAh)		540	Standard charging/discharge method
Charging	Charging voltage Max.(V)	3.65	Charging modeCC&CV
	Standard Chargin current(mA)	120	0.2C
	Continue charging current Max. (mA)	600
Discharging	End of discharging voltage Min.(V)	2.5
	Standard Chargin current(mA)	120	0.2C
	Continue discharging current (mA)	600
Operation temperature	Standard Charging	0℃~60℃
Operation temperature	Standard Discharging	-20℃~60℃
Weight (g)		25g
Internal resistance (mΩ)		<160	AC 1kHZ

3.2V AA IFR14500 Lithium Iron Phosphate Battery 600mAh With Protection Circuit Application For Smart Lock

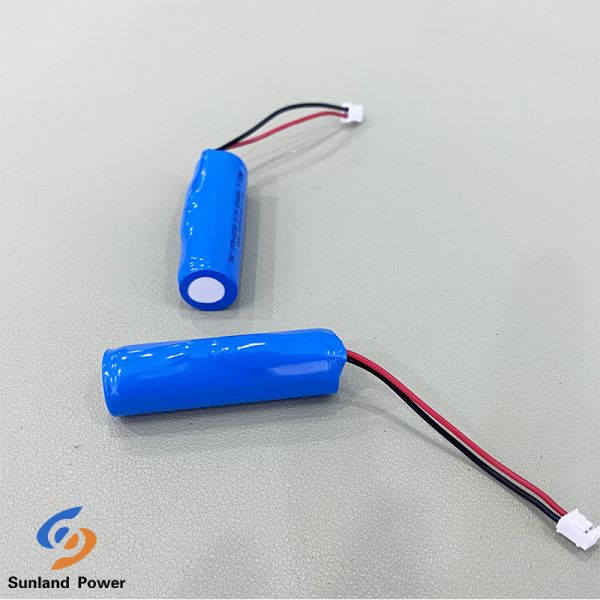

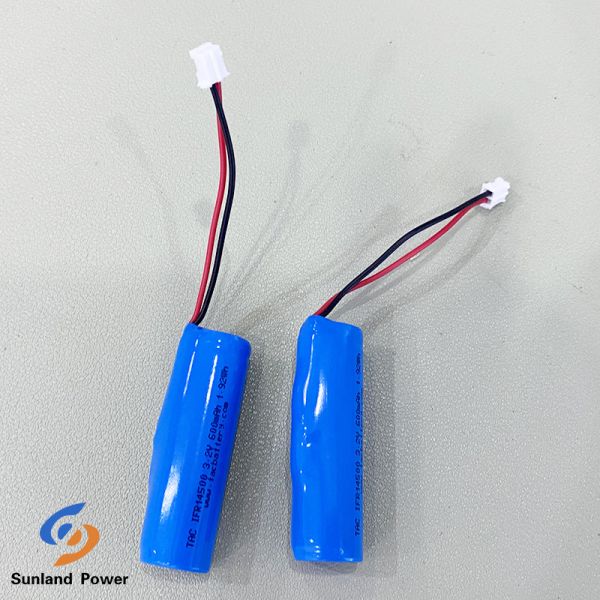

Picture:

3.2V AA IFR14500 Lithium Iron Phosphate Battery 600mAh With Protection Circuit Application For Smart Lock

Parameter of PCM

Item	Content	Criterion
Over charge Protection	Over charge detection voltage	3.65±0.025V
Over charge Protection	Release voltage for over-charging	3.45±0.025V
Over discharge protection	Over discharge detection voltage	2.5±0.05V
Over discharge protection	Release voltage for over-discharging	3.0±0.05V
Over current protection	Over current detection current	2.5～5.5A
Over current protection	Detection delay time	9～15mS
Short protection	Detection condition	Exterior short circuit
	Detection delay time	200～400uS
	Release condition	Cut short circuit
Interior resistance	Main loop electrify resistance	RSS ≤60mΩ
Static current	Consumption current (self consumption) - single cell	≤10μA
Working current	Maximum continuous charge current	2A
Working current	Maximum sustained discharge current	2A
Temperature	Operating temperature range	-40～ +85℃
Temperature	Storage temperature range	-40～ +125℃
